TDPRO Set of Two 23x7-10 ATV Tire Rim Wheel Assembly 4 Bolt & 32in 810mm Rear Axle +60V 2500W Brushless Motor Gearbox with Wiring Harness for Electric Vehicles Dolly Cart Trike Baja Go Kart 4-Wheeler
Product details
| Management number | 221737203 | Release Date | 2026/05/03 | List Price | US$600.00 | Model Number | 221737203 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BatteryAGM Technology + Factory Activated + Sealed Maintenance Free Battery + No acid pack needed.12V20AhDimensions: 180mm (7.1” L) x 78mm (3.1"W) x 170mm (6.7"H)Weight: 14.1 lbsChinese ATV Tire Rim Wheel Assembly - 23x7-10- 4 Bolt - Front Rear 4PRMax inflates 24 P.S.I (165 Kpa)Max Load 264LBS (120 kg)10 P.S.I Operating Pressure Tread 2 NylonSide Wall 2 NylonPlease notice: it is 4 holesNot for highway serviceBrake cable length: 1200mm/47.24inCaliper mounting hole spacing: 62mm/2.44inAxle: Wheel Hub distance: 32" /810mmDiameter: 25mm6 tooth Spline Drive axleOD of the disc rotor: 190mmBolt Spacing of the 4 Stud wheel hubs:110mmMaterial: IronFunction: Regulate speed differences,Enhance driving stability, Optimize power transmissionApplicable Models: ATV UTV Baja Go-kart 4-Wheeler Quad Buggy Electric VehicleDifferential Gearbox: Gear Ratio: 12:1High Power Electric Brushless MotorThe motor has high speed and high torque; with super smooth drive characteristics, almost no noise, super load work, like the refrigerator work hum is still smallDC Brushless Differential MotorITEM NO.: JS14BA/12Rated Voltage(V): 60VOutput Power(W): 2500WCommutation: BrushlessRated Speed (RPM): 5000rpmMax Input Rated Speed (RPM): 6000r/minRated Current: 63AMax Output Torque: 400N.mReduction Ratio: 12:1Insulation Class: FProtection Class: IP33DC Brushless ControllerMade of high-quality aluminum material2500W60V/72V110AKit includes2x tires +1x rear axle kit +1x brake caliper5x batteries +1x motor with gearbox +1x controller1x battery charger +5x battery connect cable1x foot pedal +1x 3 speed switch +1x keylock switch1x reverse switch +1x brake switch1x miniature circuit breaker +1x wiring harness
- 23x7-10 Tubeless tire with 10-inch rim: Central hole: 3.54in (90mm); Bolt diameter: 0.39in (10mm); Mounting hole eye to eye: 3.07in (78mm); L x W: 23.03in x 7.08in; Max load 264lbs (120kg); 4-Ply; 24psi
- Battery: amperage: 20Ah / voltage: 12V; size: 7.1"L (180mm) x 3.1"W (78mm) x 6.7"H (170mm); rechargeable maintenance free battery

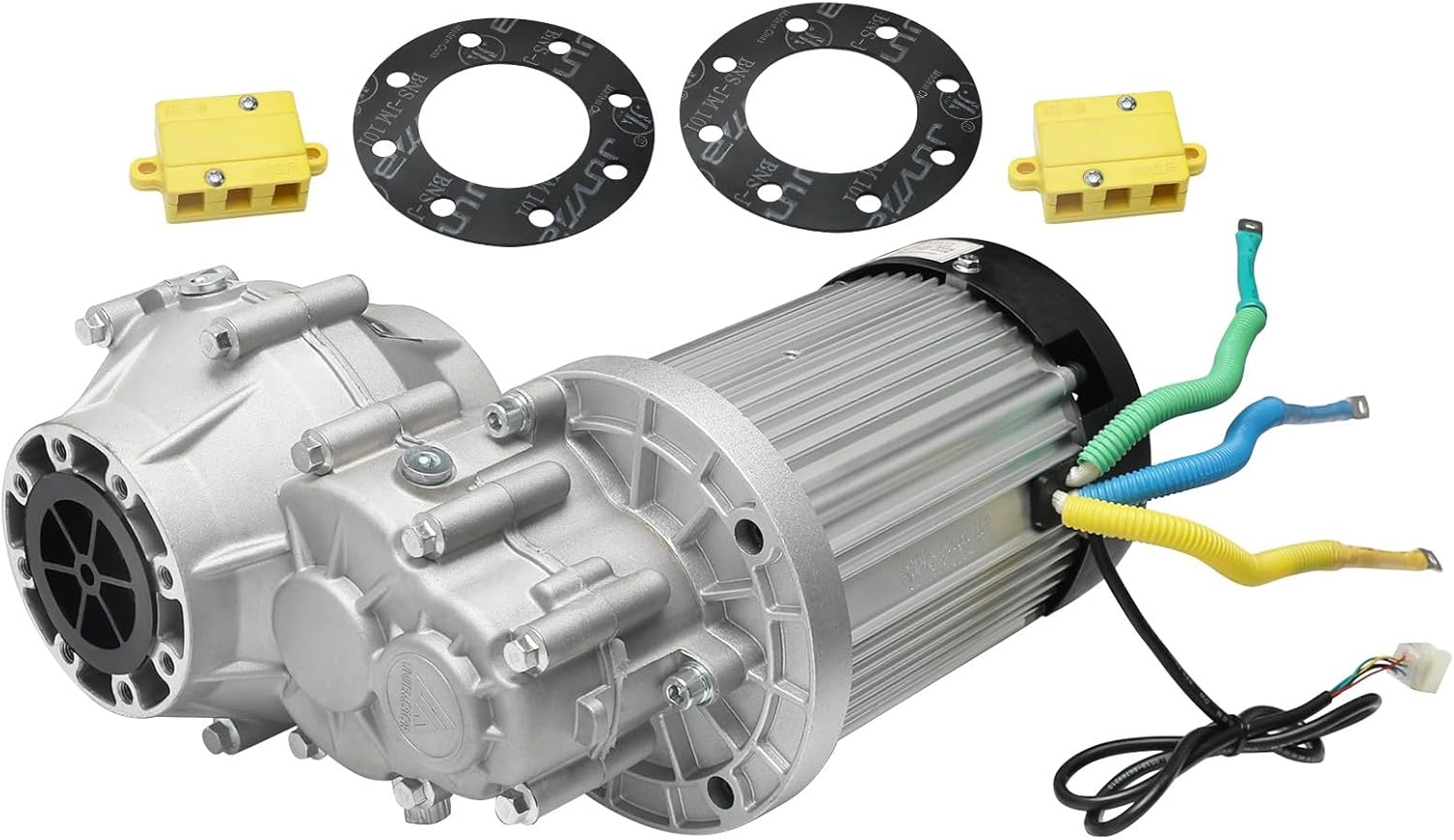

- 60V 2500W Motor and Gearbox: Rated Speed: 5000RPM, Max Speed: 6000RPM, Max Torque: 400N.m, Shaft Spline: 6 Teeth, Rated Current: 63A, Reduction Ratio:12:1
- Controller: 60v-72v, 110A, 2500w, L x W x H size is 12.8’’ x 5.3’’ x 3’’ (326mm x 135mm x 75mm)
- Rear Axle Size: Axle overall length: 810mm / 32inch; 6T; 4 holes wheel hub, bolt distance: 110mm / 4.3inch

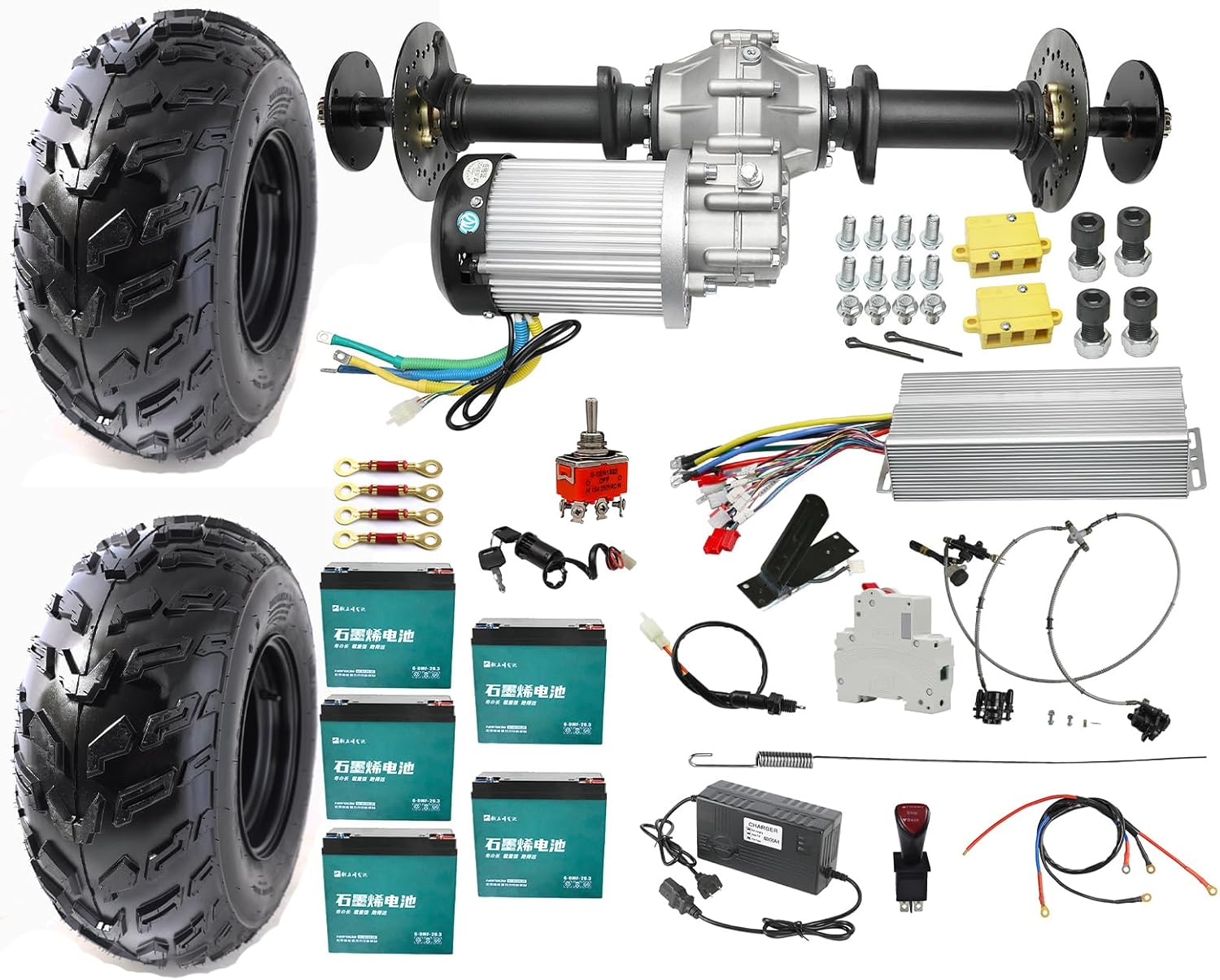

- Kit includes: 2x tires +1x rear axle kit +1x brake caliper +5x batteries +1x motor with gearbox +1x controller +1x battery charger +5x battery connect cable +1x foot pedal +1x 3 speed switch +1x keylock switch +1x reverse switch +1x brake switch +1x miniature circuit breaker +1x wiring harness
| Size | 10in-23x7-10 |
|---|---|
| Color | black |
| Rim Size | 10 Inches |
| Brand Name | TDPRO |
| Load Index | 30 |
| Wheel Size | 10 Inches |
| Manufacturer | JCMOTO |
| Model Number | tl092-3+td609+td608+tk158+td056-1 |
| Material Type | Nylon |
| Exterior Finish | Aluminum |
| Automotive Fit Type | Universal Fit |
| Included Components | brake caliper+controller+battery |
| Pitch Circle Diameter | 3.07 Inches |
| Manufacturer Part Number | 092-3 |
| Compatible with Vehicle Type | Golf Cart |
| Manufacturer Warranty Description | 90 days |
